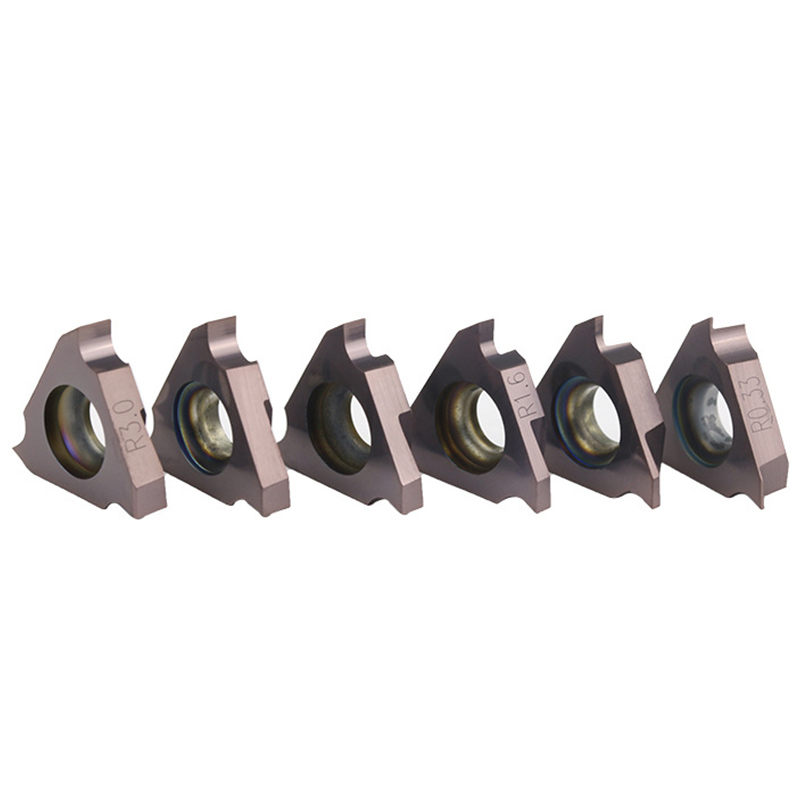

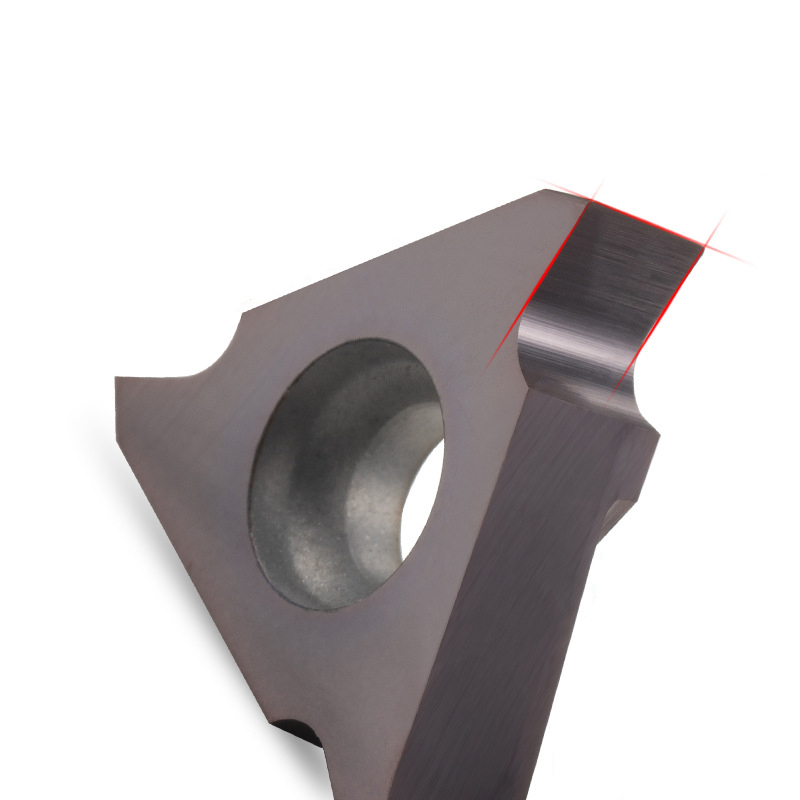

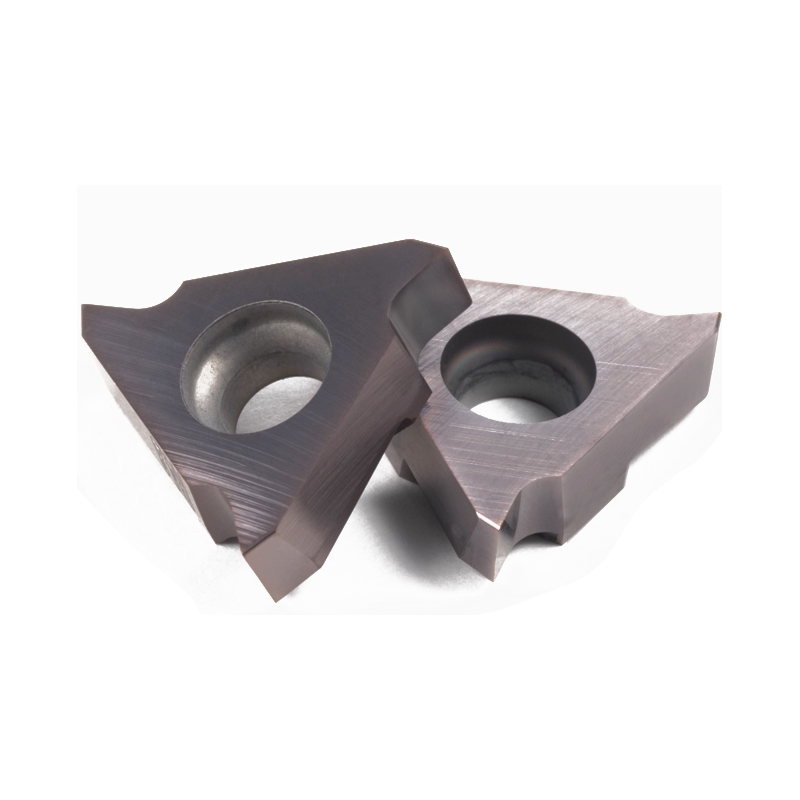

TGF32 GBA32 CNC lathe vertical-installed precision turning and grooving inserts
Carbide Turning Inserts are designed for turning & grooving operations on lathe & CNC machines. The TGF32 & GBA32 series are recommended for general-purpose turning machining of steels.
| Item | Value |
|---|---|
| Brand Name | Drow Carbide Tools |
| Customized support | OEM |
| Material | Tungsten Carbide |
| Model Number | TGF, GBA |
| Usage | Metal Cutting, Grooving |
| Hardness | HRA92 |
| Coating | PVD |
| Applicable material | 1. Stainless steel 2. Steel; etc |
| For Tool Holder | KGBA |
| Dimensions | Varies by specific model number |
These premium carbide turning inserts are highly regarded by customers worldwide. Available in various dimensions, chipbreakers, and grades.
| Part Number | Dimensions (mm) | Applicable Tool Holders |
|---|---|---|
| TGF32 R/L | CW: 0.33 CDX: 0.8 RE: 0.05 |
KTGF R/L S...KTGF R/L GTT R/L NGT... R/L |
| CW: 0.50 CDX: 1.2 RE: 0.05 |
||
| CW: 0.75 CDX: 2.0 RE: 0.1 |
||
| CW: 0.95 | ||
| CW: 1.00 | ||
| CW: 1.20 | ||
| CW: 1.25 | ||
| CW: 1.40 | ||
| CW: 1.45 | ||
| CW: 1.50 | ||
| CW: 1.75 | ||
| CW: 2.00 CDX: 2.5 |
||
| CW: 2.50 |
Note: The above specifications represent our standard production sizes. Custom dimensions can be manufactured to meet specific customer requirements. Compatible with Kyocera TGF32 series, NTK's GTM32, GTMX32, and GTMH32 series.
For inquiries about turning inserts or partnership opportunities, please contact us.
