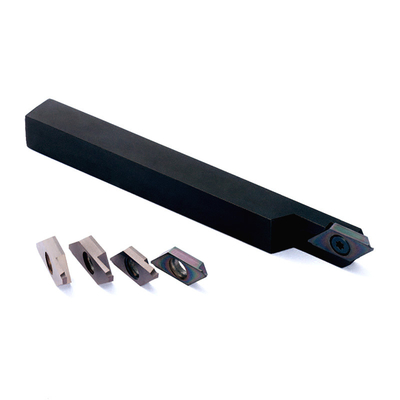

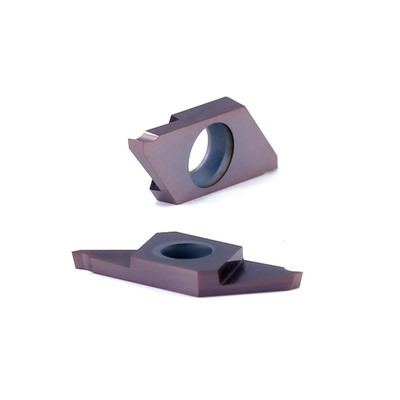

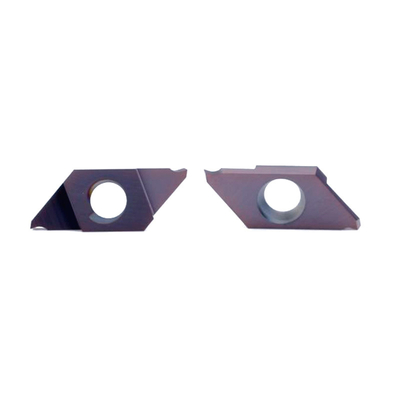

The CTPA is a widely recognized type of CNC carbide insert designed for grooving and parting-off operations. It is primarily used in lathe and CNC machines, available in various shapes and cutting angles.
This series of inserts primarily adheres to the NTK CTPA series standards. Size specifics can be customized according to customer requirements.
The CTPA series is a well-known line of carbide cutting inserts from NTK. Our Drow standard production sizes and stock specifications are based on this established NTK series.
For detailed specifications, please refer to the section below.
Material Quality: Crafted from 100% original carbide powder, providing outstanding wear resistance and durability.
Dimensions:
Coating Technology: Advanced coatings are tailored to your application, enhancing corrosion and wear resistance.
Fine Grinding Process: The insert surface features high smoothness and excellent cutting edge quality, effectively minimizing cutting resistance and friction loss.
Perfect Fit: Precision-engineered edge strips help reduce the likelihood of micro-vibration during processing.
Applicable Materials:
Customization: If our standard stock does not meet your specific needs, please attach CAD or 3D drawings for inquiries.
Production Quality: All inserts are produced using high-end EU processing equipment. For more details, please refer to the “Entire Production Quick View” section.
Product Features:
1.In order to well protect the insert edge from fracture and lead to smooth workpiece surface, we process the insert cutting edge through chamfering and tip-arc processing.
2. The insert will offer you super hard and smooth surface due to its high performance composite coating support.
3. Efficiency and professional chip-breaker design, provides perfect cutting performance.
4. Precise dimension, high accuracy and low tolerance. Perfectly fit to tool holders so that not easy to produce micro-vibration during machining.
5.The base material imported from Europe has better oxidation resistance and wear resistance.
6. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number | Dimensions | Applicable Toolholders |
||||
| W | θ | rε | Maximum Cutting DiameterφD | |||
| CTPA_ | 07F R/L | 0.7 | 16° | 0.05 | 8.4 | CTPA_ R/L |
| 10F R/L | 1.0 | 16° | 0.05 | 12.4 | ||
| 15F R/L | 1.5 | 16° | 0.05 | 16.0 | ||
| 20F R/L | 2.0 | 16° | 0.05 | 16.0 | ||
| 07 FLK | 0.7 | 16° | 0.05 | 8.4 | ||
| 10 FLK | 1.0 | 16° | 0.05 | 12 | ||
| 15 FLK | 1.5 | 16° | 0.05 | 14.5 | ||
| 20 FLK | 2.0 | 16° | 0.05 | 14.5 | ||
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CTP series, etc. | ||||||
| Part Number | Dimensions | Applicable Toolholders |
||||
| W | θ | rε | Maximum Cutting DiameterφD | |||
| CTPA_ | 07 FRN | 0.7 | 0° | 0.05 | 8.4 | CTPA_ R/L |
| 07 FLN | 0.7 | 0° | 0.05 | 8.4 | ||
| 10 FRN | 1.0 | 0° | 0.05 | 12.4 | ||
| 10 FLN | 1.0 | 0° | 0.05 | 12.4 | ||
| 15 FRN | 1.5 | 0° | 0.05 | 16.0 | ||
| 15 FLN | 1.5 | 0° | 0.05 | 16.0 | ||
| 20 FRN | 2.0 | 0° | 0.05 | 16.0 | ||
| 20 FLN | 2.0 | 0° | 0.05 | 16.0 | ||
| 30 FRN | 3.0 | 0° | 0.05 | 16.0 | ||
| 30 FLN | 3.0 | 0° | 0.05 | 16.0 | ||
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CTP series, etc. | ||||||
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
1.Checked carefully by experienced staff.
2.Microscope check.
3.German forging difference process detection
4.Edge passivation detection
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Consistent quality:Stable performance like good anti impact resistance
4.Cost-effective:Excellent tool lifetime
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1: Are insert samples available ?
A: We provide free sample,the exneeds to be paid by the buyer
Q2: Can we get a discount if our ordered quantity is big enough ?
A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.
Q3: How can we trust your product quality?
A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping
Q4: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
