Superior Carbide Milling Inserts for Processing Curved Surfaces and Arc Grooves High-Speed Performance

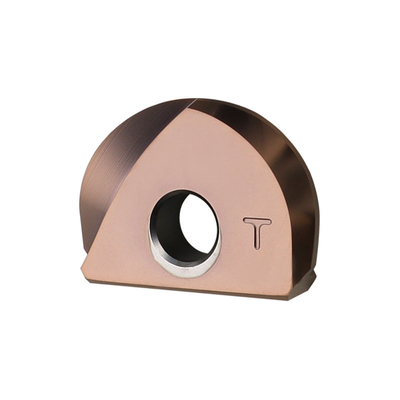

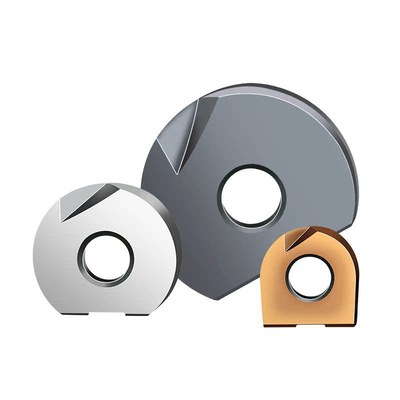

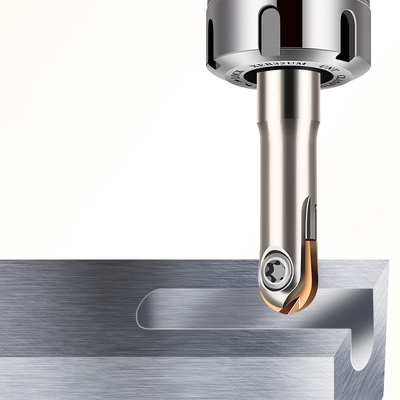

The P3200 is a specialized carbide ball milling insert designed for use in CNC milling machines. These inserts are particularly effective for processing curved surfaces and arc grooves, making them ideal for semi-finish milling at high speeds across a variety of materials, especially stainless steels and high-temperature alloys.
| Part Number | Dimensions (mm) |
|---|---|
| P3200 | Refer to specifications |
Note: For detailed dimensions, please consult the specifications. Custom sizes can be processed according to customer requirements.
Product Specification:
| Part Number | Dimension(mm) | |||
| D | R | h | H | |
| P3200-D08 | 8 | 4 | 9.5 | 2 |
| P3200-D10 | 10 | 5 | 11.5 | 2.5 |
| P3200-D12 | 12 | 6 | 11.5 | 2.5 |
| P3200-D16 | 16 | 8 | 14 | 3 |
| P3200-D20 | 20 | 10 | 16 | 3 |
| P3200-D25 | 25 | 12.5 | 21.5 | 4 |
| Attention:The above are our standard production size and standard stock specifications for this series, the size details can be processed separately according to customer requirements | ||||
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.
Q2. Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q3: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.
Q4:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
Q5: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
